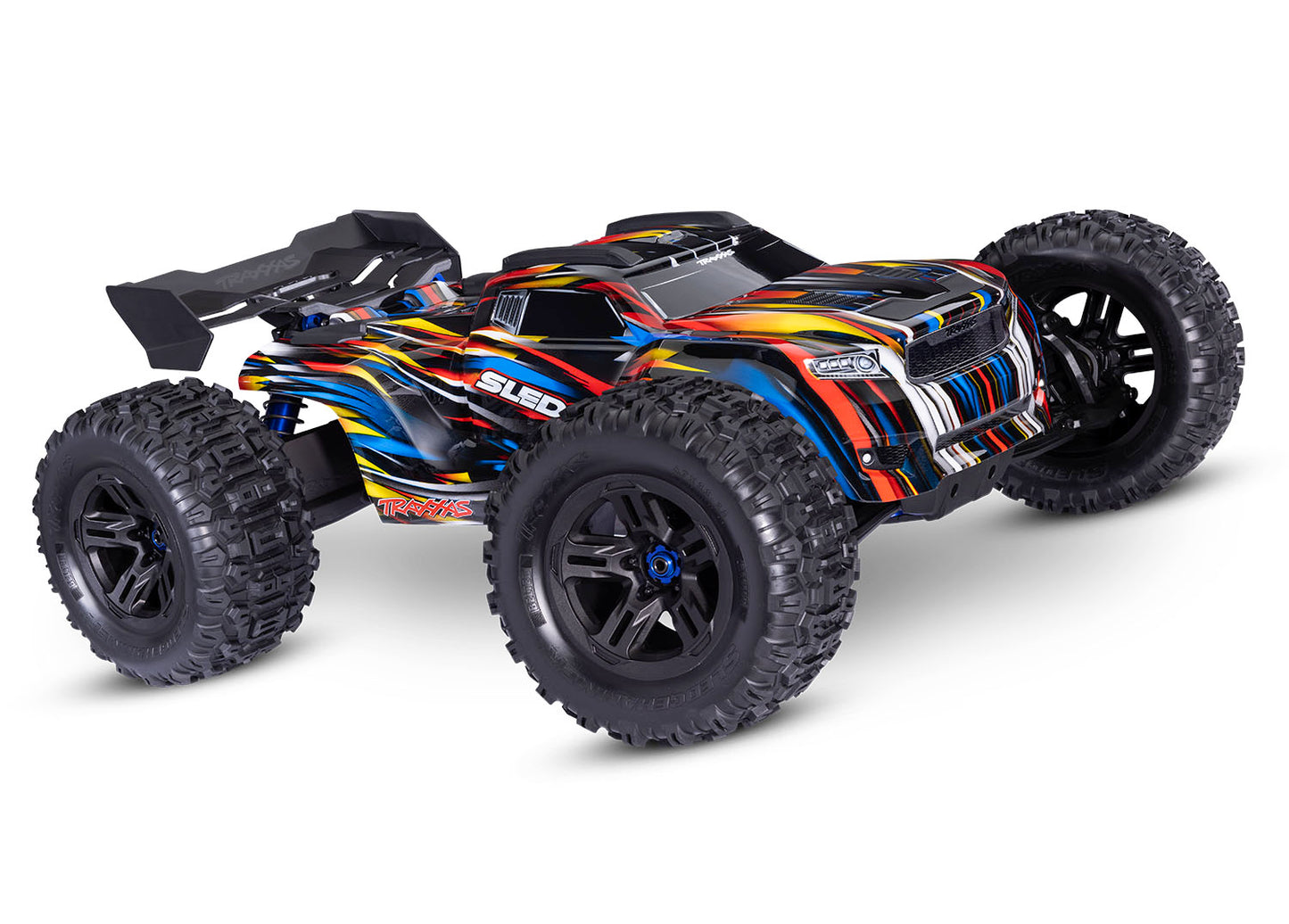

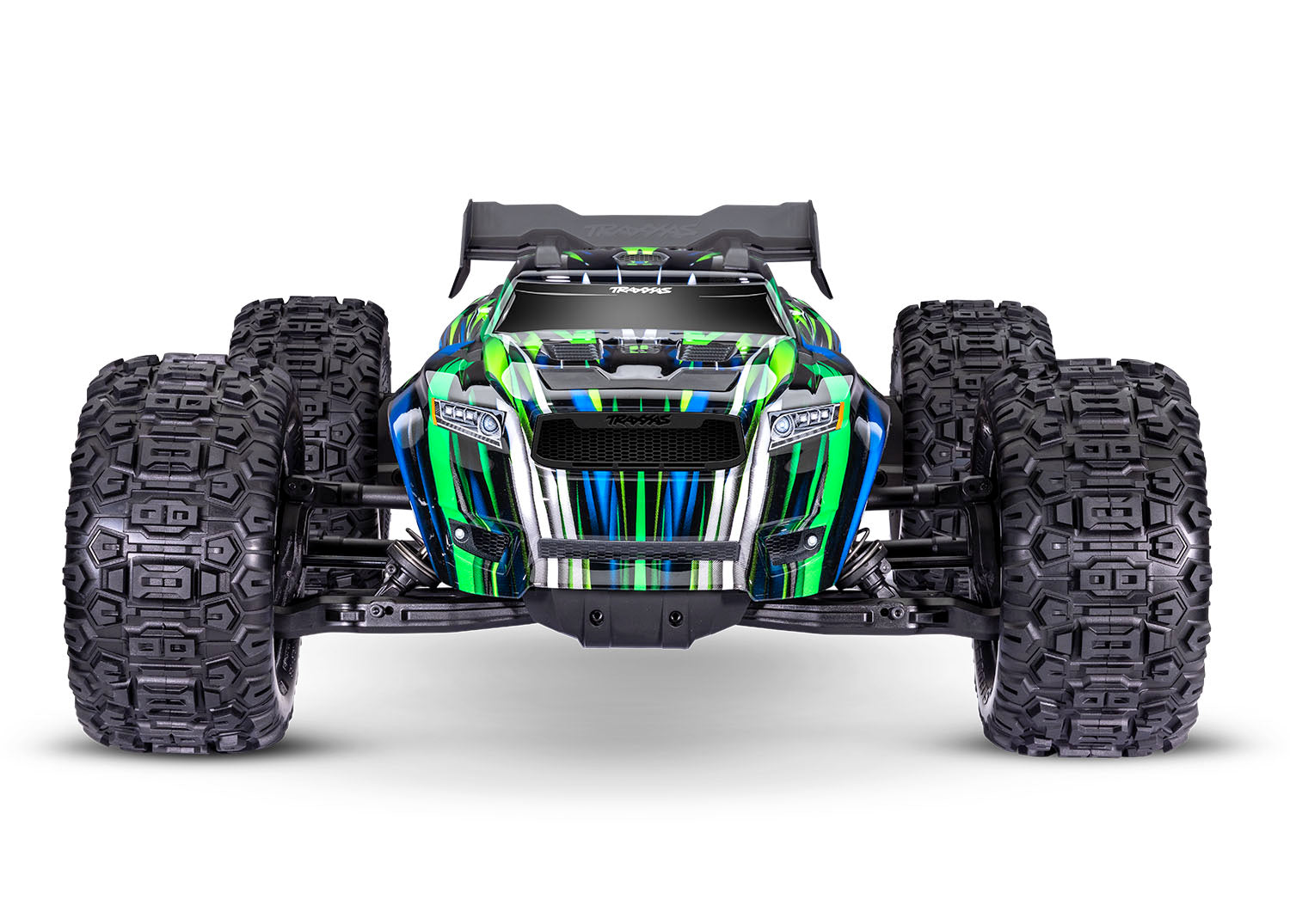

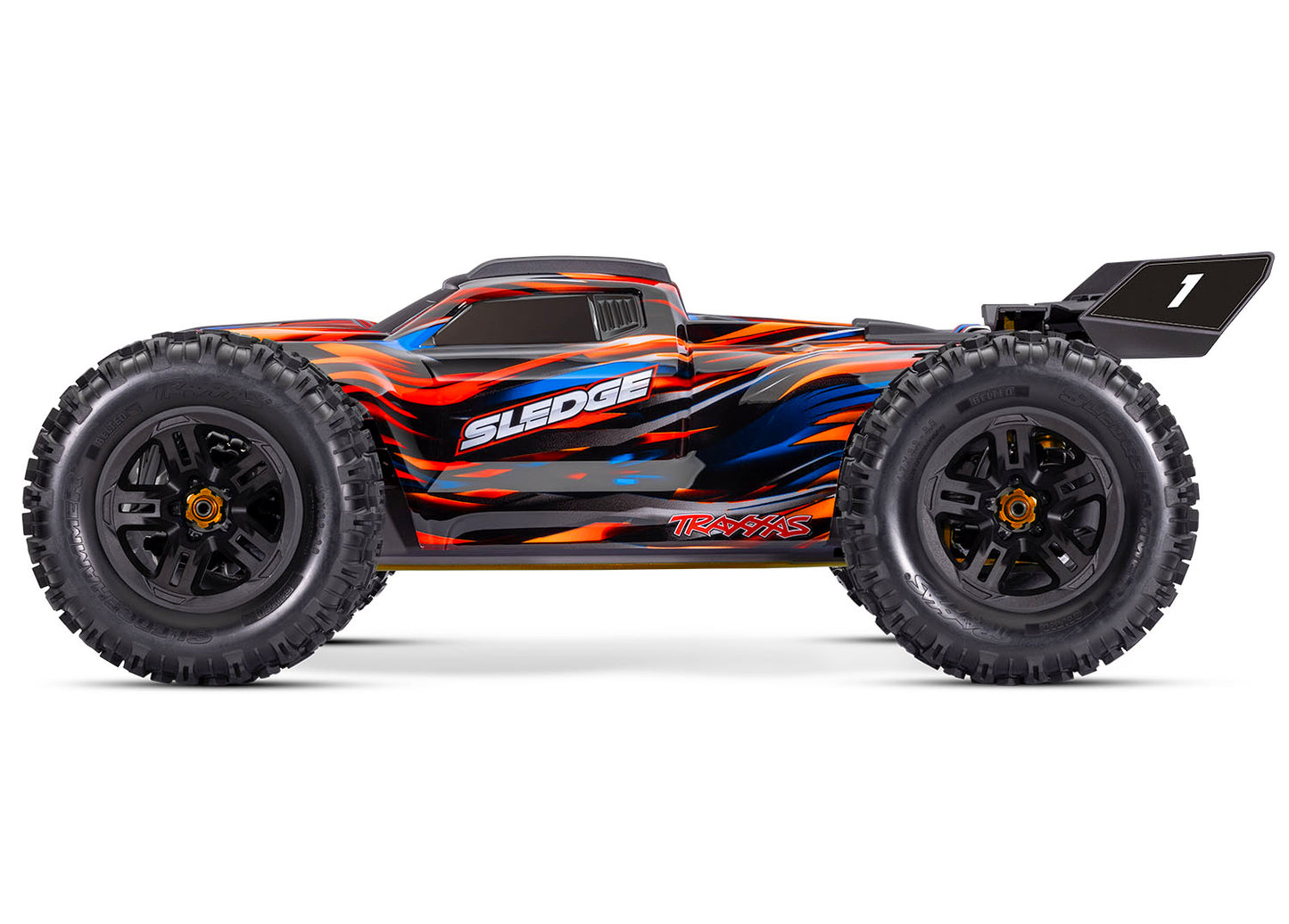

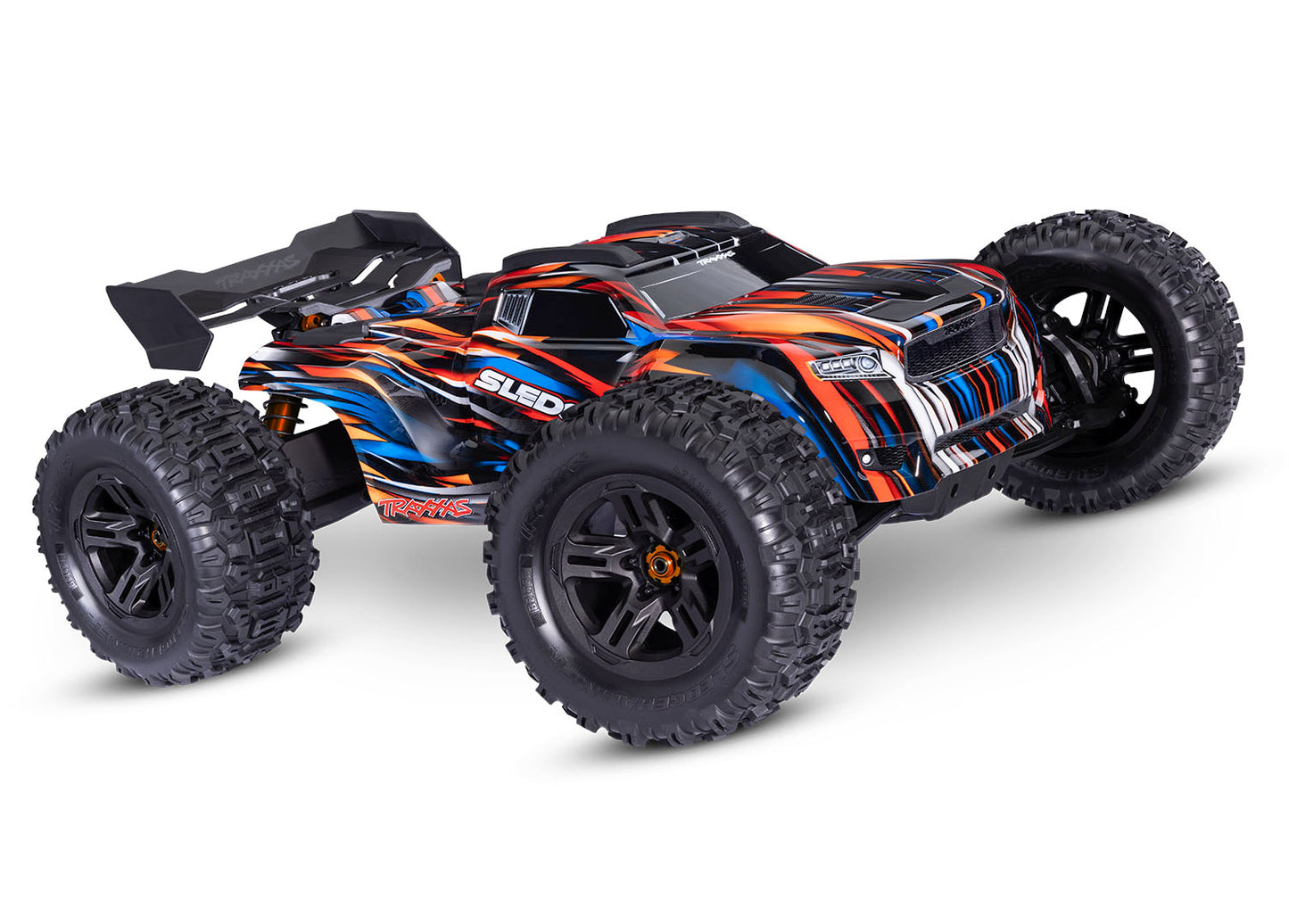

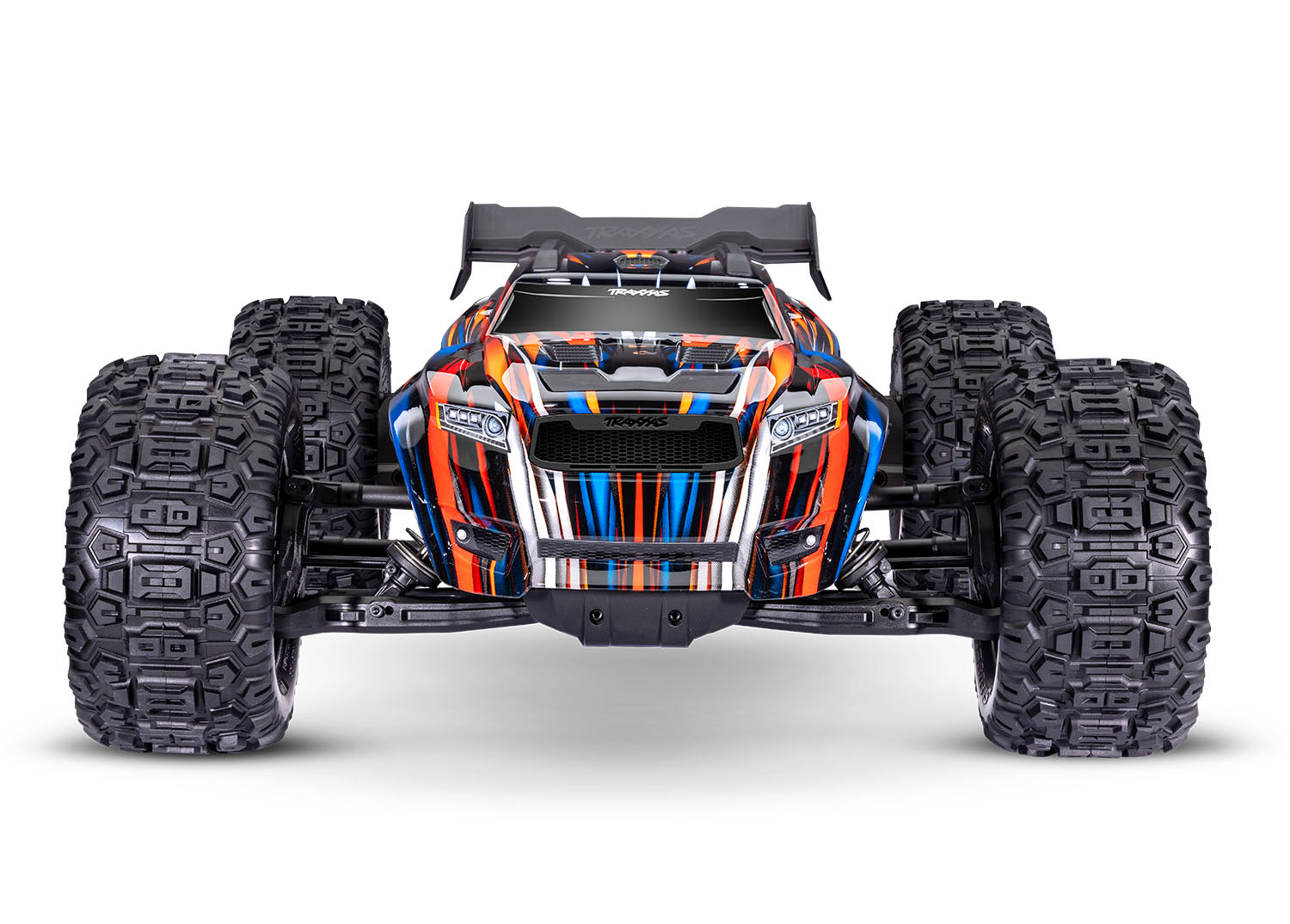

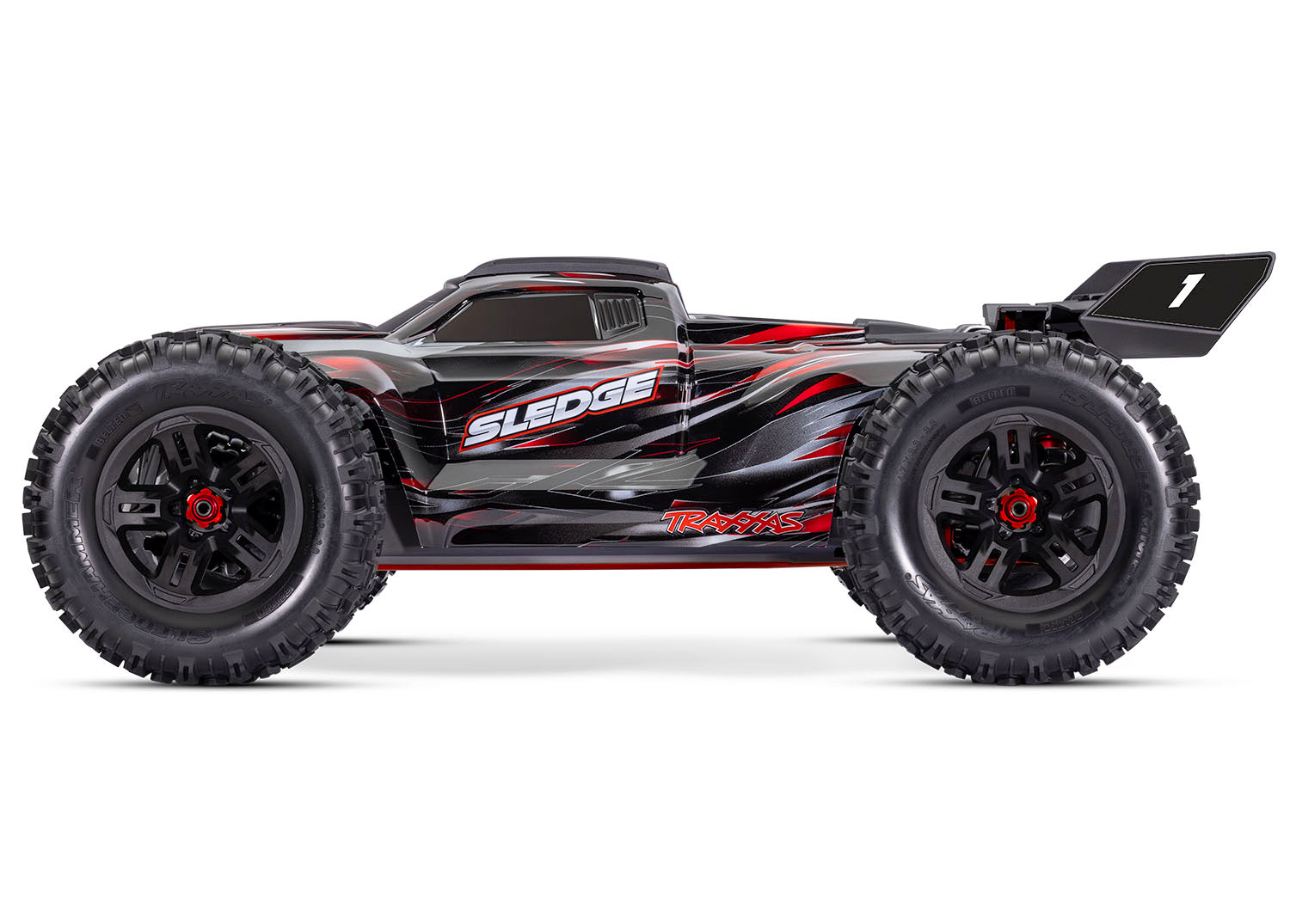

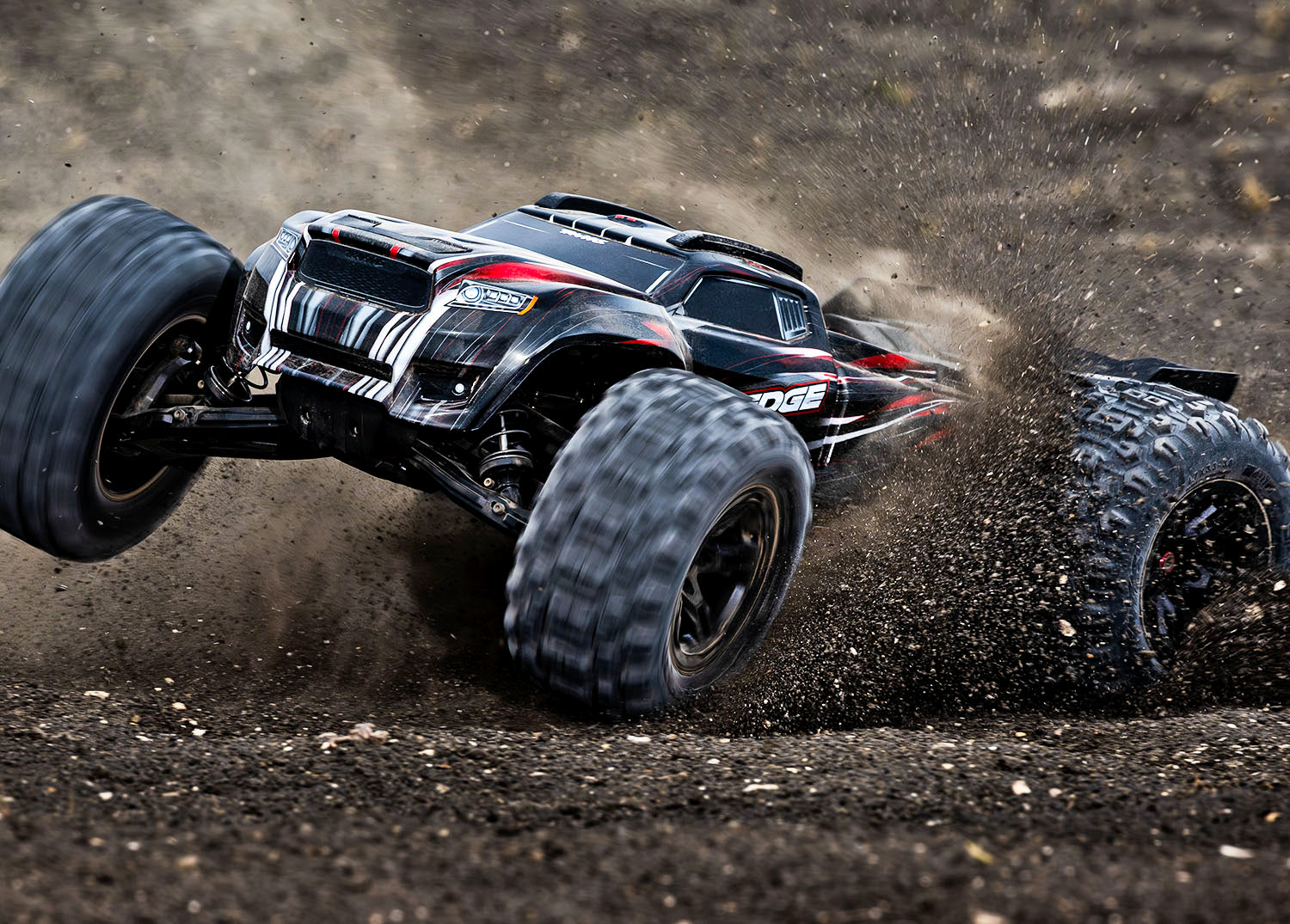

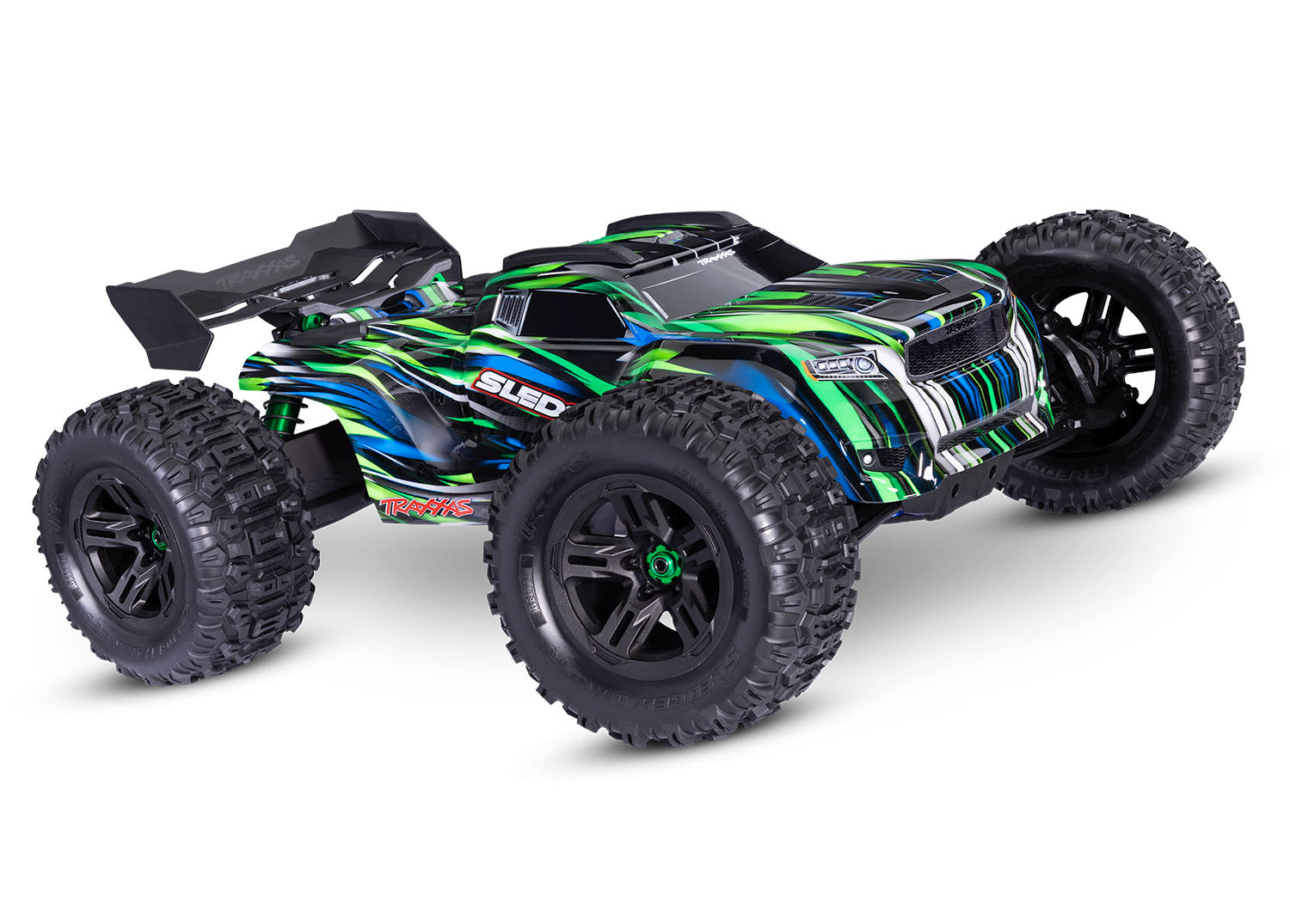

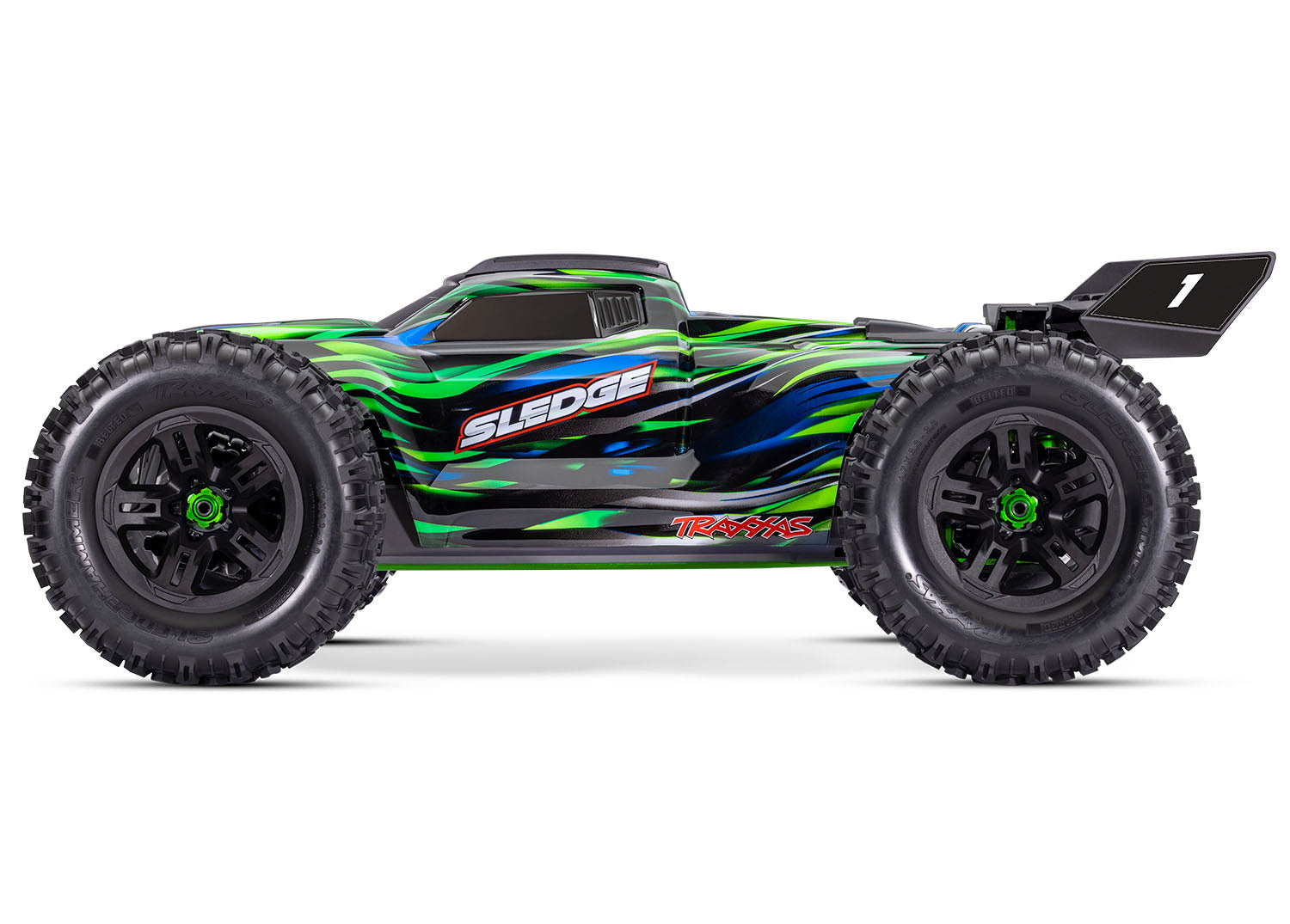

1/8 Sledge Belted

Name: 1/8 Sledge Belted
Brand: Traxxas
SKU: 95096-4-GRN-1
Price: 769.95 USD
Availability: InStock

$769.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:95096-4-GRN-1

Color Green Red Blue Orange

Quantity

VXL-6s™ Waterproof Electronic Speed Control
- 6s LiPo compatible
- Integrated cooling fan
- Real-time telemetry via Traxxas Link™
- 3-LED status indicators
- Powered accessory ports
- 10-gauge silicone wire
- Integrated protection circuits
Velineon^® 2000 kV Brushless Motor
- 4-pole 2000 kV
- 5 mm output shaft
- Finned can for better heat dissipation

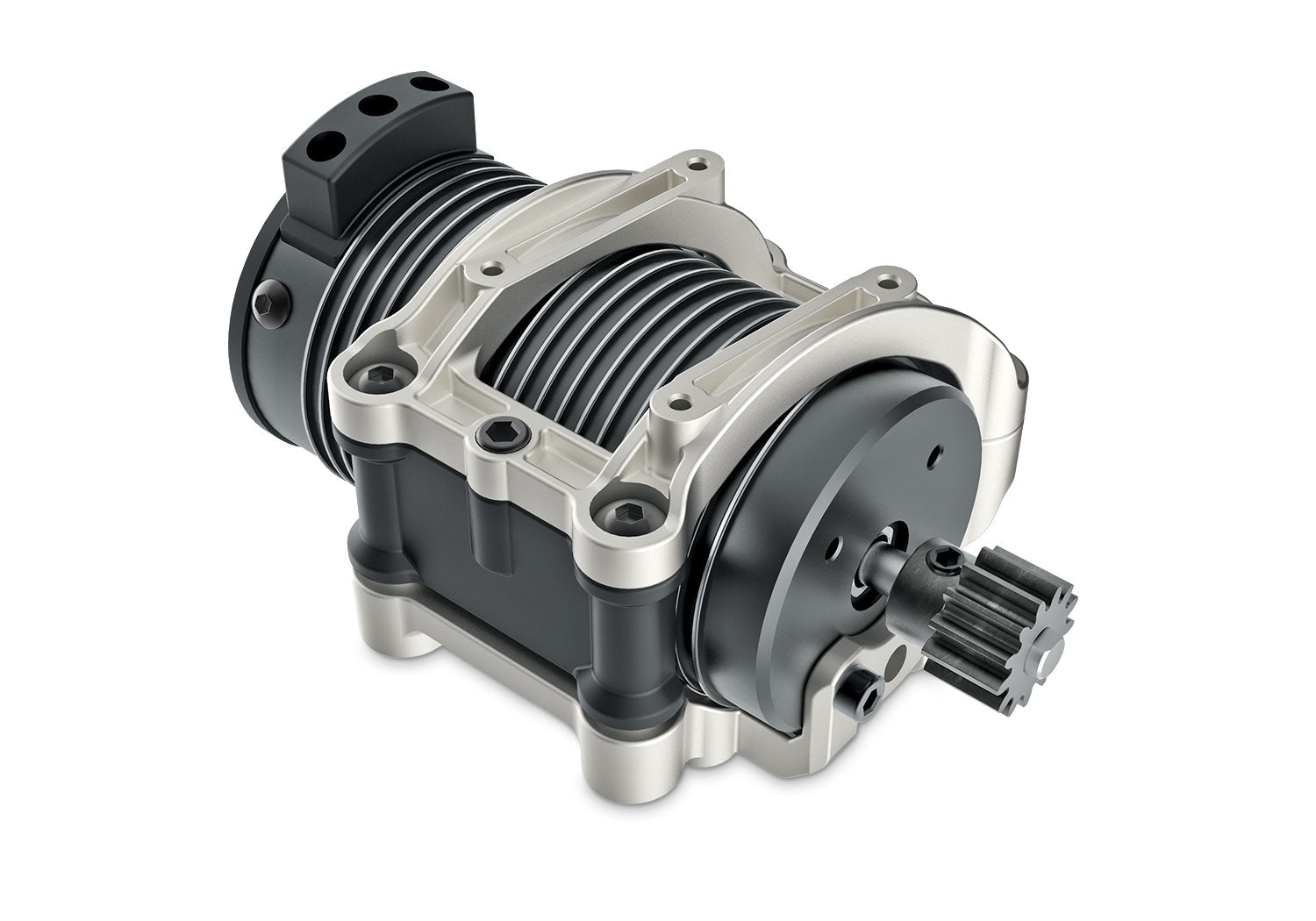

- Aluminum motor cradle mount
Up to 70+ mph with Two 3s LiPo Batteries (sold separately)
Traxxas Stability Management^®
- Helps prevents spinouts and loss of control
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- Traxxas Link enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Programmable Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)

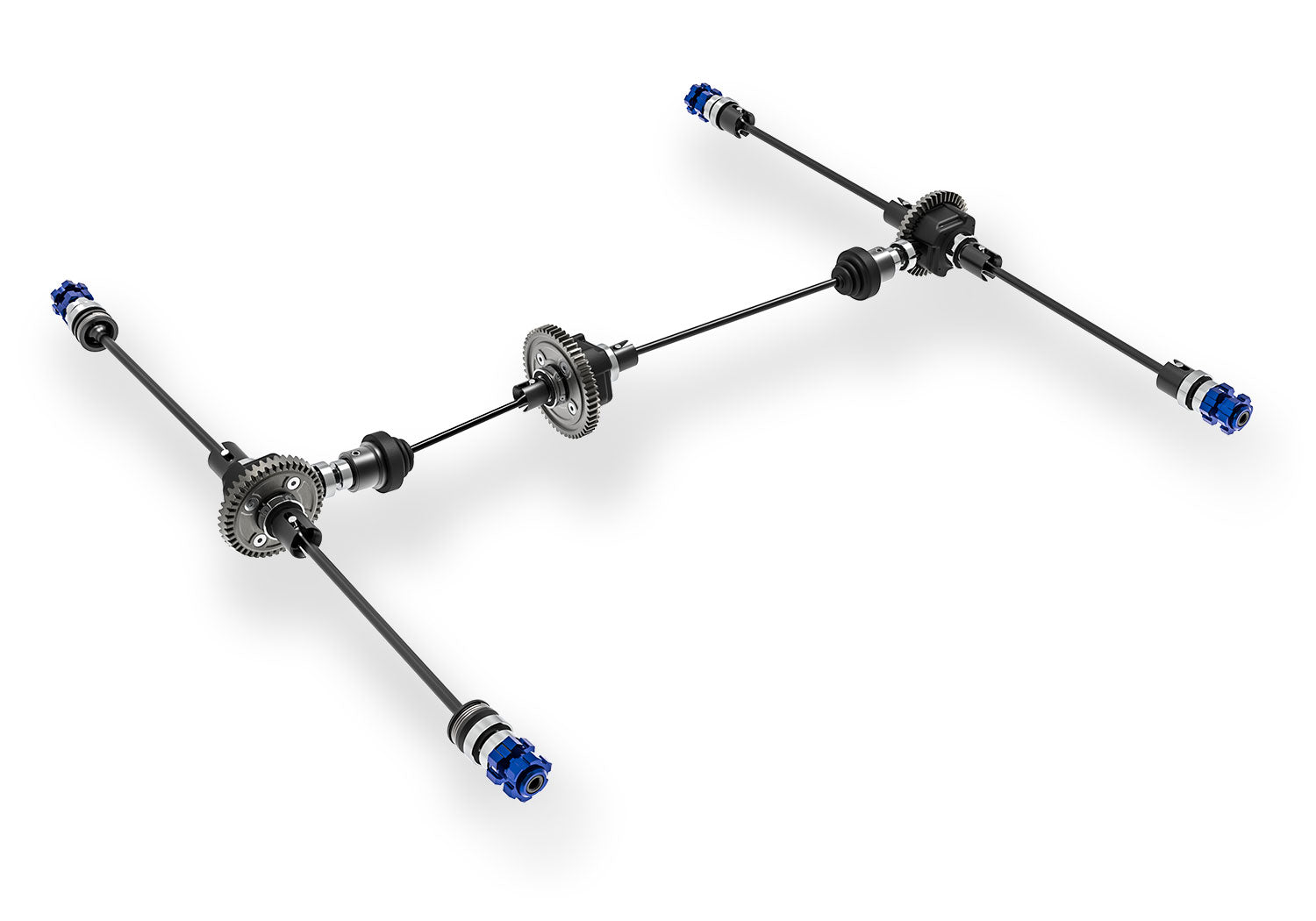

Drivetrain
- Full-time 4-wheel drive
- Heavy-duty steel driveshafts
- Large 8 mm steel stub axles
- Steel dogbone center driveline
- Protective rubber boots on differential inputs
Transmission
- Mod-1 pinion and spur gears
- Fixed gear mesh system
- Torque-Biasing Center Drive
Differentials
- Heavy-duty sealed 4-gear design
- Large scale steel ring and pinion gears
- Large 8 mm output shafts
- Steel drive cups
- Easy access bulkheads

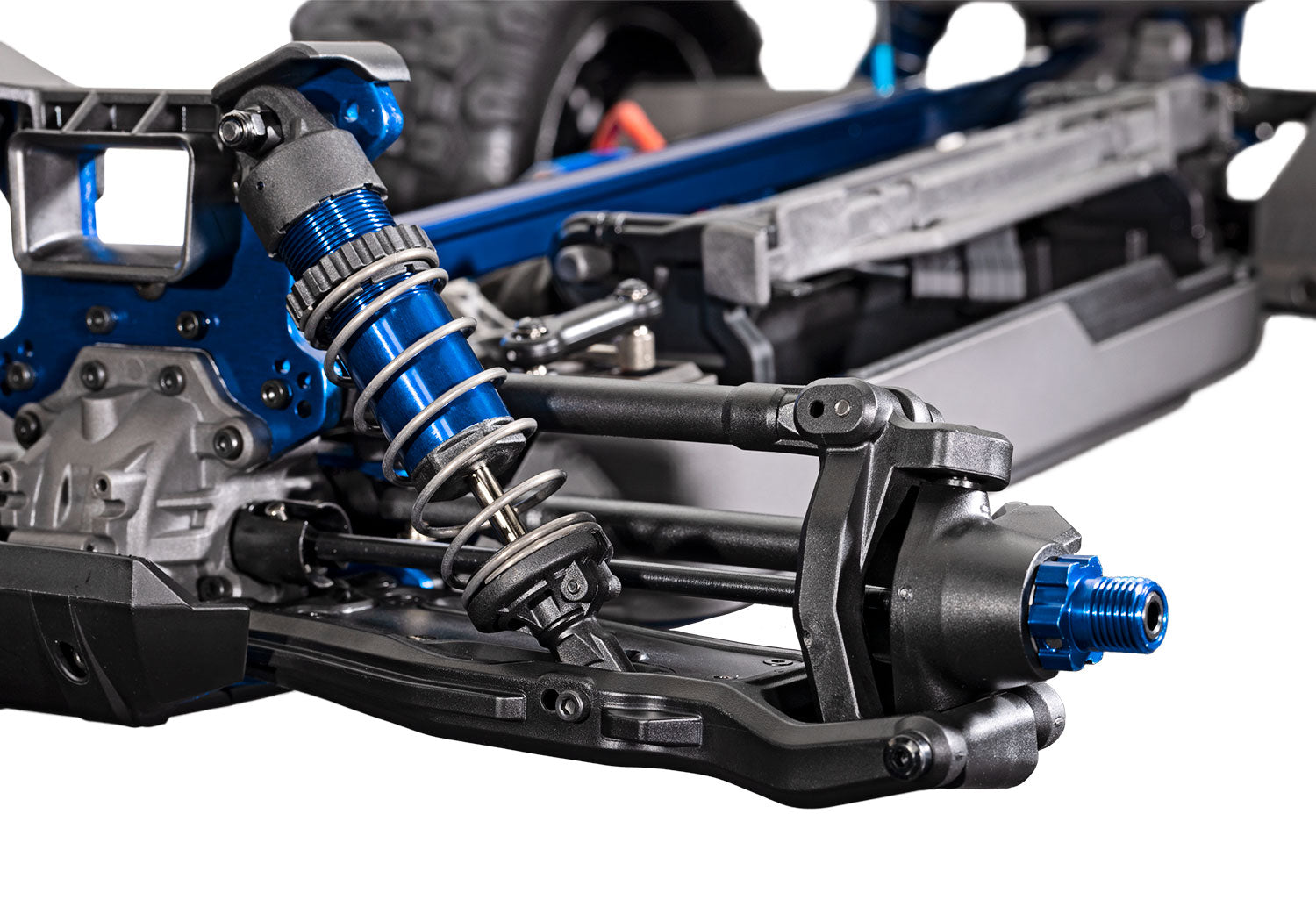

GT-Maxx^®Shocks
- Longer rear shocks for more travel
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Height-adjustable spring retainer
- Lower spring perches bolted on
Suspension
- Thick 5 mm 6061-T6 aluminum shock towers
- Ultra-tough composite arms
  - Made from our strongest cold-weather material
  - Molded insert for clean look
  - Rear rock deflectors
  - Press-in hinge pins to reduce play
- Oversize molded toe and camber links
- Heavy-duty C-hubs with oversize bearings
- Multiple mounting points for suspension tuning

Wheels and Tires

Splined 17 mm aluminum axle hubs

Model Name:	Sledge Belted
Model Type:	Monster Truck
Model Speed:	70+ mph with 6s LiPo battery and optional gearing
Model Skill Level:	4
Scale:	1/8
Weight:	12.74 lbs (5.77 kg)
Length:	23.78 inches (604 mm including wing)
Width:	18.10 inches (459 mm)
Front Track:	18.10 inches (459 mm)
Rear Track:	18.10 inches (459 mm)
Height:	8.43 inches (214 mm)

Wheelbase:	15.10 inches (384 mm)
Center Ground Clearance:	1.95 inches (50 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	1.0 metric pitch
Servo(s):	2275 digital metal-gear waterproof (347 oz-in)
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM^® receiver

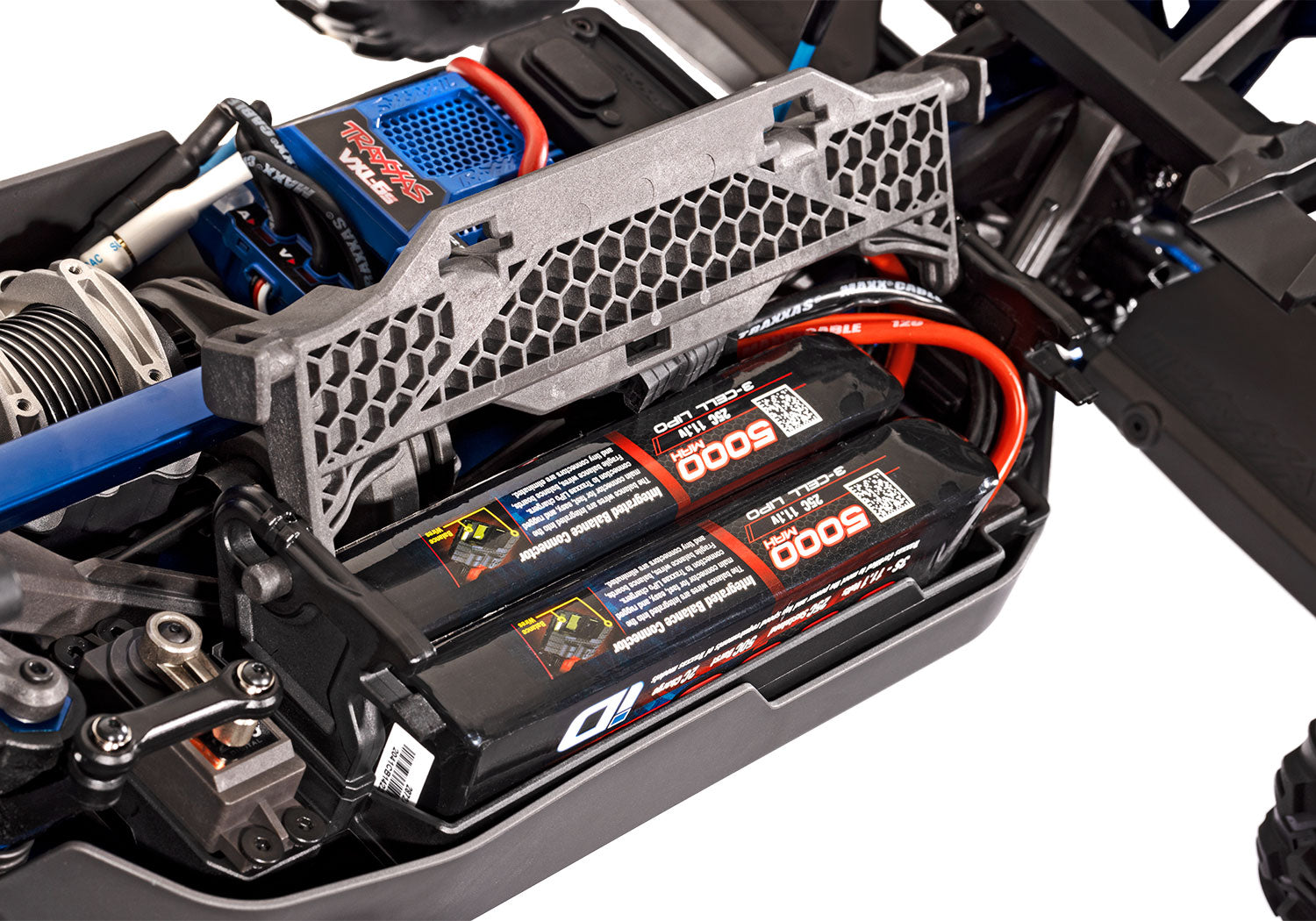

Battery Compartment Specs:	181 mm X 54 mm X 45 mm

Motor Name:	4-pole 2000 kV
Motor Type:	2000 kV sensorless brushless
Motor Weight:	14.32 oz (406 g)
Motor Length:	2.97 inches (76 mm)
Motor Diameter:	1.65 inches (42 mm)
Motor Shaft Size:	5 mm
Motor Connector Type:	Traxxas 6.5 mm bullet connectors

ESC Name:	VXL-6s
ESC Type:	Brushless
ESC Case Size:	2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm)
ESC Weight:	7.30 oz (207 g)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
