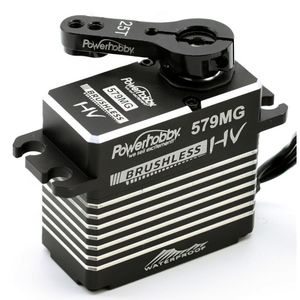

579MG High Torque High Speed Digital Brushless Servo 0.07/486oz @ 8.4V

PHBPH579MG

579MG High Torque High Speed Digital Brushless Servo 0.07/486oz @ 8.4V

High Performance Standard Digital Servo
Heat Sink Fast Cooling Design
Strengthened High Chrome Steel Shaft
Extra Strong Steel Gears
Three Ball Bearings
Long Lifespan Brushless Motor
Programmable Digital Circuit
High Precision Magnetic Sensor
Fully Waterproof Up To IP67 Grade

Ideal for 1/8 & 1/10 Scale On road, off road, Truck, Boat, Airplane, Helicopter, Robot and engine etc.

Features:

• Gear: Steel
• Motor: BLS
• Size: 40*20*37.2mm (1.57 x 0.78 x 1.46 in)
• Weight: 83g
• Connector Wire: TYU 300 mm
• Operating Voltage: 4.8-8.4 V

Specifications:

• Operating speed: 0.097sec/60 @ 6.0V
• Operating speed: 0.086sec/60 @ 7.4V
• Operating speed: 0.075sec/60 @ 8.4V
• Stall Torque: 28 kg-cm (389 oz-in) @ 6.0V
• Stall Torque: 31 kg-cm (431 oz-in) @ 7.4V
• Stall Torque: 35 kg-cm (486 oz-in) @ 8.4V
