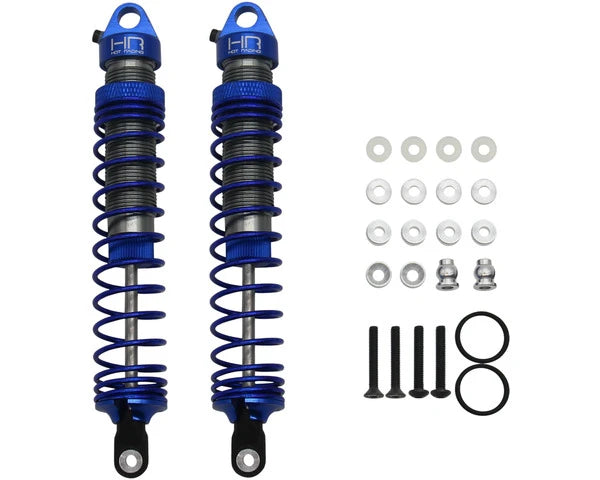

Aluminum 120mm Heavy Duty Big Bore Shocks, for 1/10th Off-Road Vehicles (2pcs)

Hot Racing 120mm big bore threaded body aluminum shocks for many 1/10th scale off-road vehicles using 120mm shocks

- CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
- & quot;Big Bore & quot; threaded shock bodies
- CNC machined 11mm Delrin pistons
- 3.5mm stainless steel shock shafts
- Gunmetal and blue anodized aluminum components
- Vented shock caps with bladder seals for consistent rebound dampening
- Threaded shock collars with o-rings to prevent unwanted movement
- Composite plastic lower shock ends with aluminum balls
- Fully assembled, just add shock oil and bleed

- Two (2) assembled shocks
- Two (2) M3x20mm flat head cap screws
- Two (2) M3x18mm button head cap screws
- Two (2) 3mm countersunk washers
- Two (2) 5.9 hollow balls
- Four (4) 1.5mm thick spacers
- Four (4) 3mm thick spacers

- Silicone shock oil of modeler's choice and bleeding per the typical bladder shock bleeding procedure
- Best used with Team Associated shock Green Slime grease or shock o-ring grease when rebuilding lower seal
- Snap ring pliers when rebuilding lower seal

- Extended length: 120mm
- Compressed length: 75mm
- Overall length: 130mm
- diameter: 19mm
- Spring: ~5.0lb/in, 1.54mm wire, 16 turn dual rate, 19.3mm OD, 73mm long

- Use spacers as need for installation
