FELONY 6S BLX Street Bash 1/7 All-Road Muscle Org

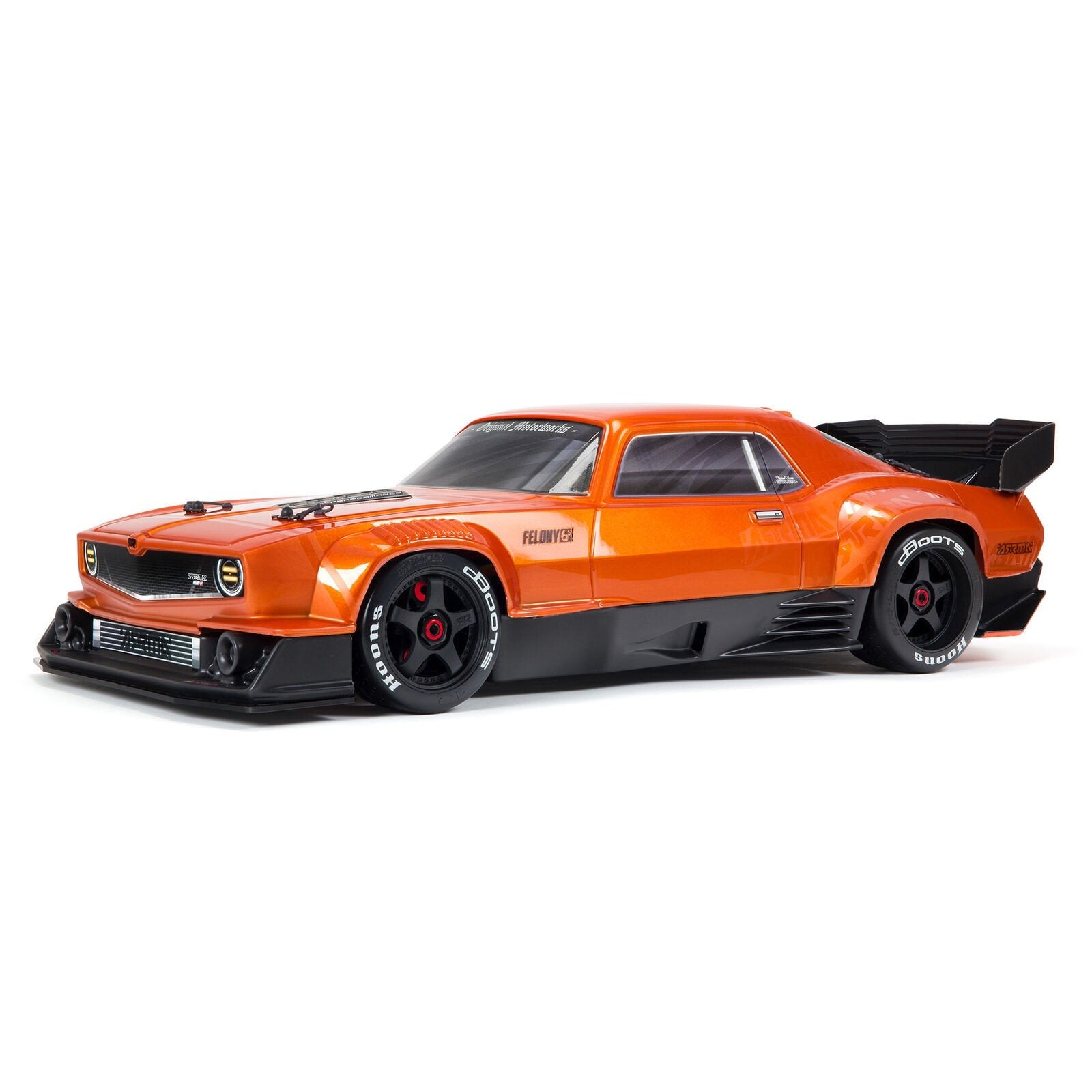

The 1/7 scale ARRMA® FELONY™ 6S BLX Street Bash 4WD RTR brings retro mod style to the BLX platform. Fast and tough, it can reach 80+ MPH speeds out of the box over on-road, dirt and oval tracks — and includes telemetry-capable Spektrum® Smart electronics.

Overview

Inspired by the muscle cars that shaped the American auto industry in the 1960s and 70s, the 1/7 scale FELONY™ 6S BLX 4WD RTR tops off a tough and powerful ARRMA® brushless platform with stunning retro style — ideal for intermediate-level drivers who are eager to experience street bashing or drag racing at 80+ MPH speeds (achievable in optimum conditions using a 6S LiPo and the included speed pinion gear). With its sleek muscle car body and large rear tires, the FELONY™ 6S BLX looks right at home blasting at high speeds on-road, over dirt roads and on oval tracks.



The multi-part, undercut muscle car body design with an aerodynamically adjustable wing delivers standout street bashing style. It can also be customized with the included accessory kit and decals to provide scale muscle car looks the way YOU want them. The FELONY™ 6X BLX Street Bash RTR's eye-catching appearance extends to the realistic 5-spoke wheels mounted with dBoots® Hoons™ all-road tires. For authentic muscle car handling, ARRMA® engineers have included regular front and larger rear tires, with the front and rear gearbox ratios matched to the tire sizes.

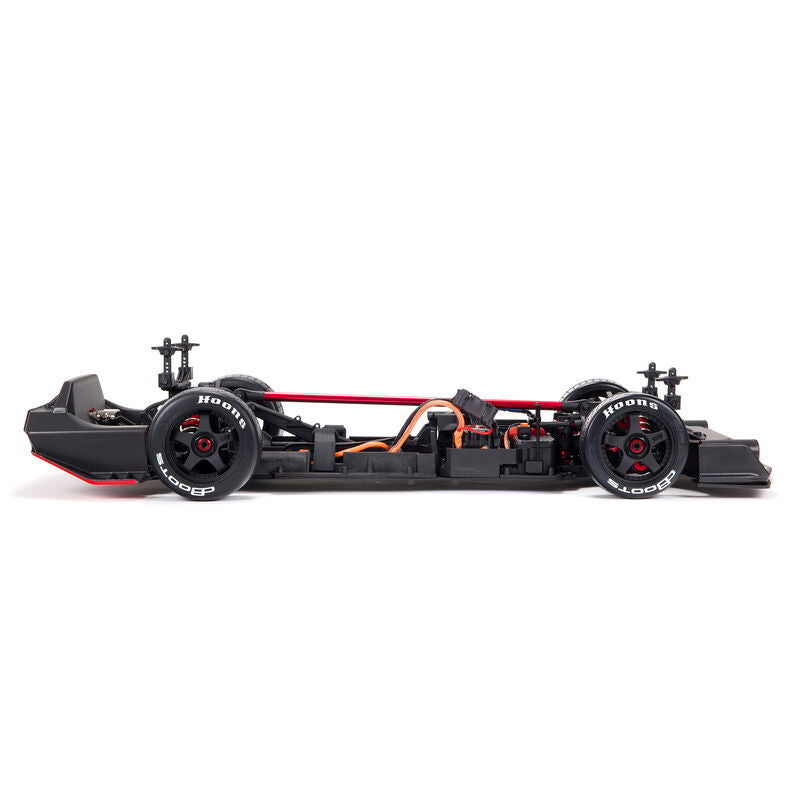

Underneath those streamlined Street Bash looks is a chassis which proves to the world, once again, that ARRMA® builds the most durable bashers. The 6061-T6 anodized aluminum chassis houses a heavy-duty drivetrain with steel driveshafts plus all-metal diff outdrives and gearbox internals. Its toughness is reinforced with a center chassis brace. The adjustable, oil-filled, anodized aluminum shocks are mounted on strong, black-anodized aluminum shock towers. Push the throttle to the max — the FELONY™ 6S BLX Street Bash RTR is made to take it.



Speaking of throttle…ARRMA® has equipped the FELONY™ 6S BLX Street Bash 4WD RTR with the 3-channel Spektrum® DX3™ radio and an SR6110AT receiver featuring AVC® (Active Vehicle Control™) technology for high-speed stability. A convenient voltage level indicator is built into the transmitter which lets you easily track on-board Smart battery power. The vehicle's brushless power system also features Spektrum® Firma™ Smart components, so it's easy to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM. Just download the Spektrum® Dashboard™ app for iOS or Android, available for free at the App Store or Google Play.

 Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)

Spektrum® Firma™ 150A Smart ESC

dBoots® Hoons™ all-road tires

RTR Completion Level includes everything needed besides batteries and a compatible charger

Features

Spektrum® 3-Channel DX3™ 2.4GHz DSMR® radio and SR6110AT Receiver with AVC® (Active Vehicle Control™)

Compatible with Spektrum® Dashboard™ app for iOS or Android

ARRMA® ADS-15M Waterproof Servo

Spektrum® Firma™ 150A Smart ESC

Spektrum® Firma™ 4074 2050Kv Brushless Motor with Safe-D input gears

Muscle car handling with regular front and larger rear tires

Front and rear gearbox ratios matched to tire sizes

Customizable scale muscle car looks

Includes interchangeable accessory kit and decals

Multi-part undercut body design

Adjustable front and rear body mounts

Aerodynamically adjustable wing

3mm Plate, 6061-T6 anodized aluminum chassis

Center brace for maximum durability

Heavy-duty drivetrain with durable steel driveshafts throughout

High-speed center driveshaft support

Three oil-filled metal gear diffs

All-metal diff outdrives and gearbox internals

Oil-filled, adjustable, anodized aluminum shocks

Black-anodized aluminum front and rear shock towers

Front bumper and splitter

Rear diffuser with exhaust detailing

Waterproof* receiver box

Large battery trays

Five-spoke wheels

Durable wheel hubs

dBoots® Hoons™ all-road tires

2-year limited warranty (see manual for details)

* For details on waterproof standards, please refer to the product instruction manuals

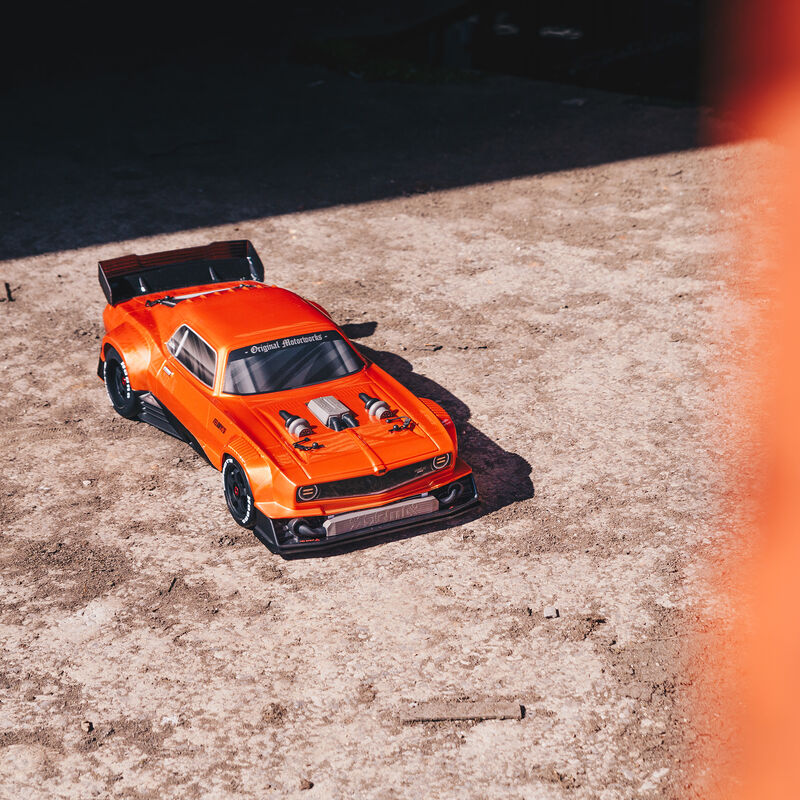

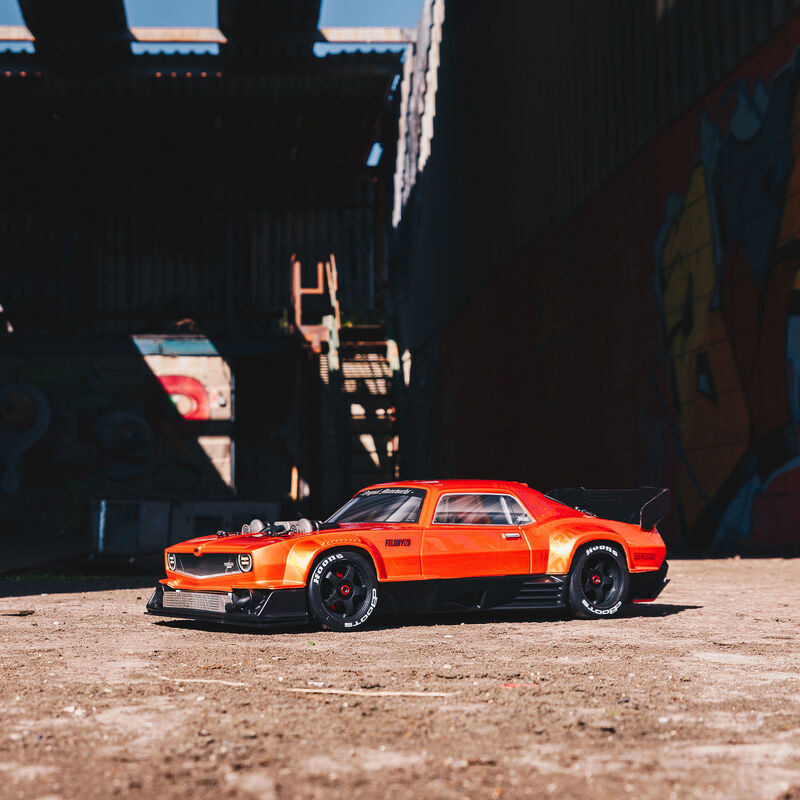

CLASSIC MUSCLE

CLASSIC MUSCLE

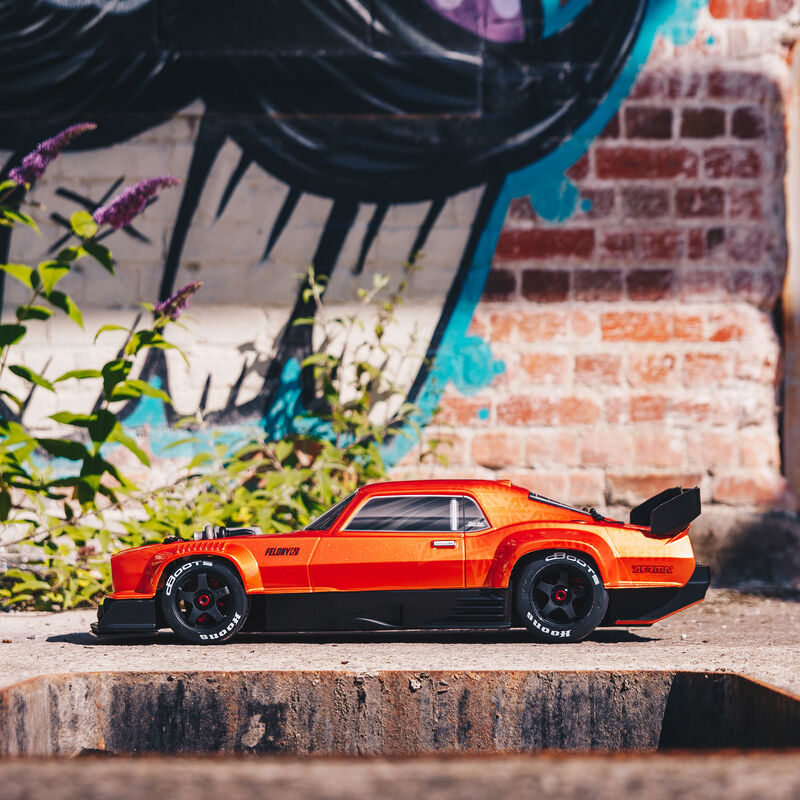

Awesome resto-mod muscle car styling

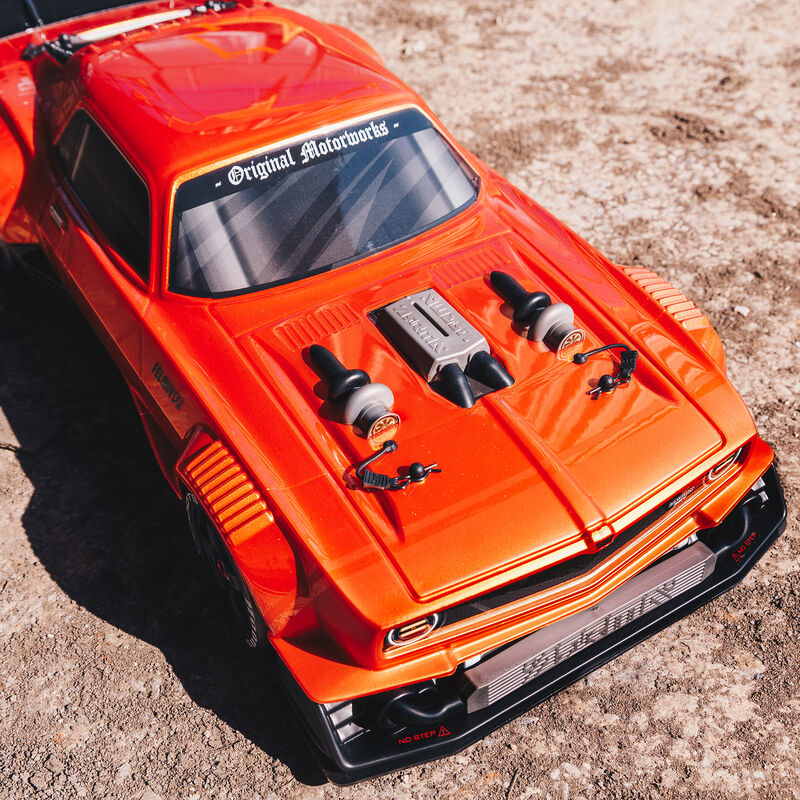

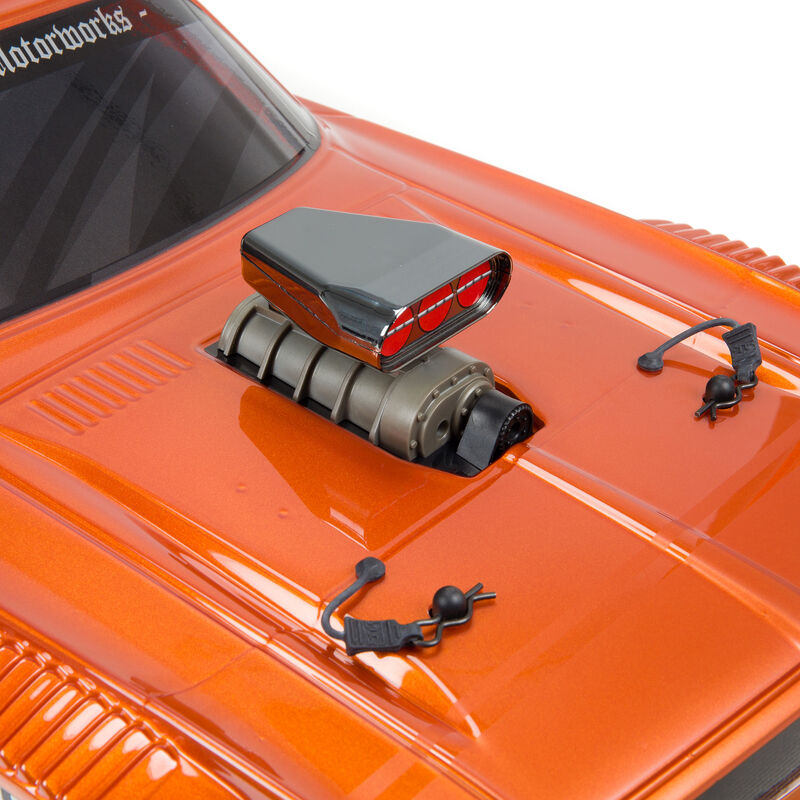

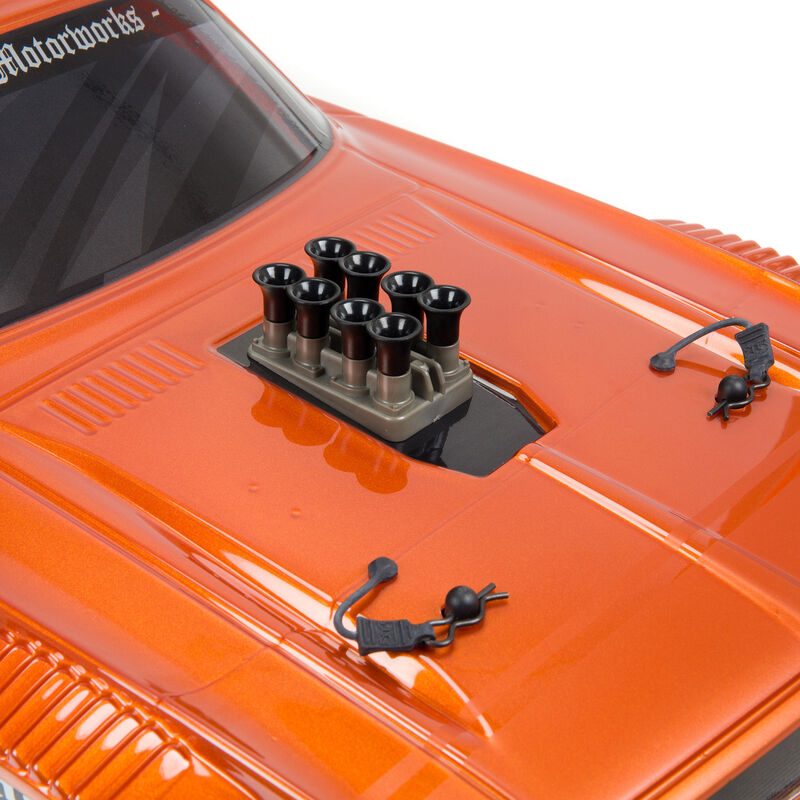

CUSTOMIZE YOUR RIDE

CUSTOMIZE YOUR RIDE

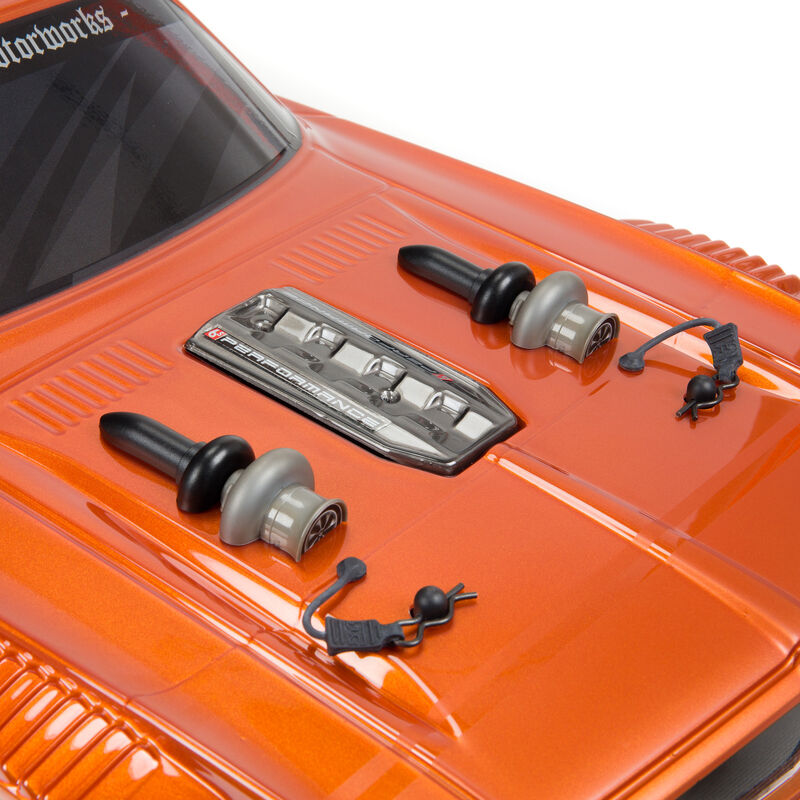

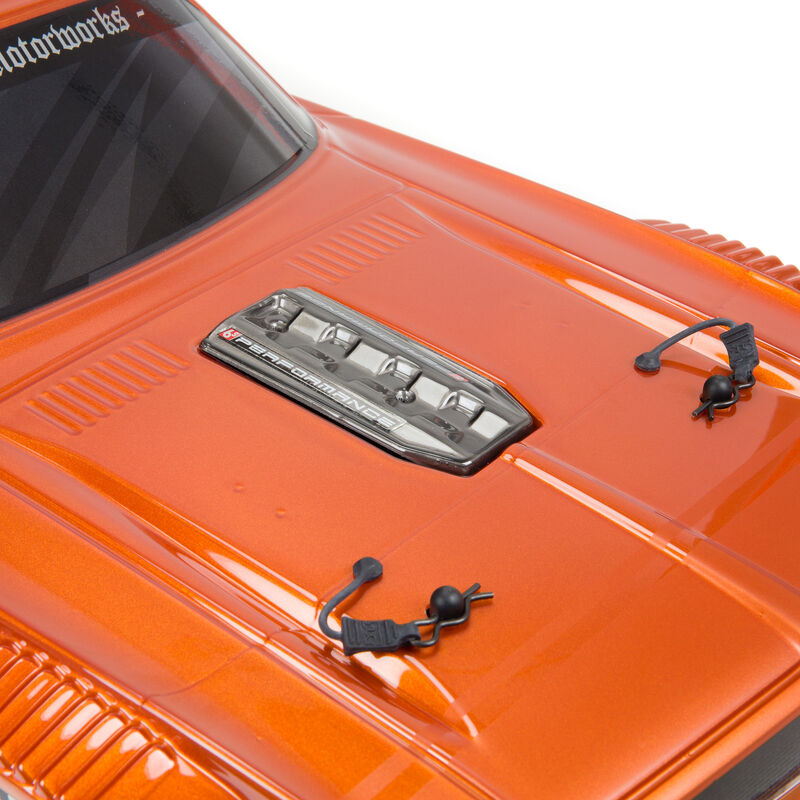

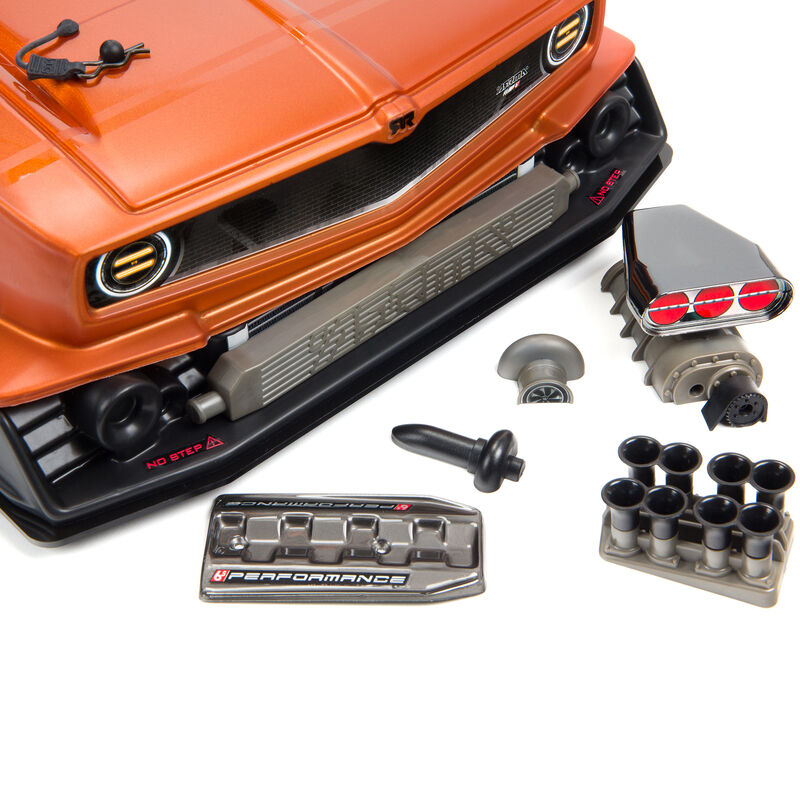

Change the look of your model with the included engine intake and cooling accessories pack.







TUNABLE AERO

TUNABLE AERO

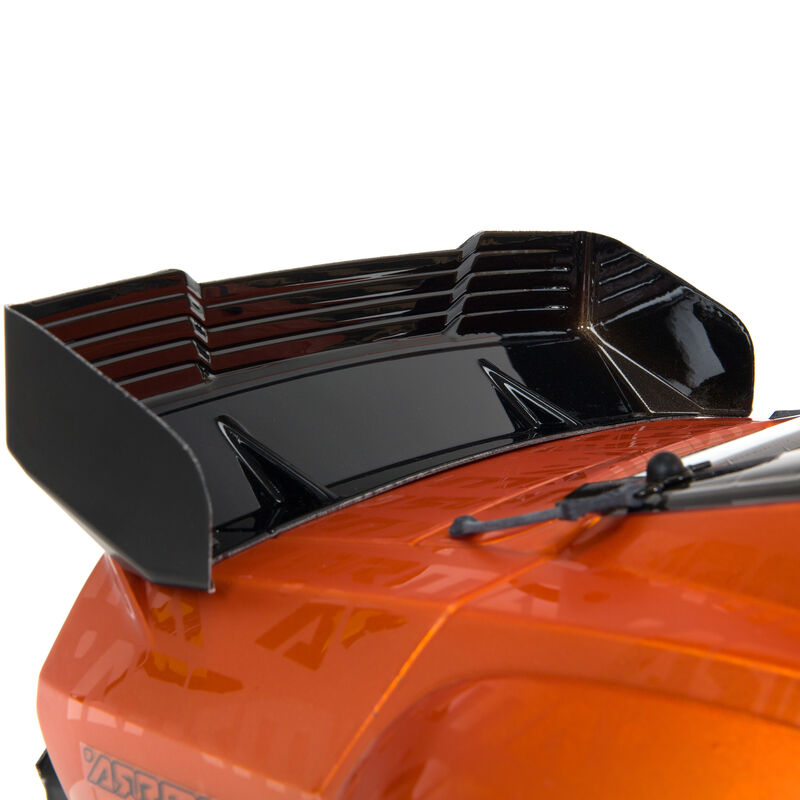

Tune your wing's aerodynamic stability how you want it







DUAL-PURPOSE

DUAL-PURPOSE

Front splitter adds downforce and stability. Highly detailed bumper adds awesome ARRMA looks







ALL-ROAD AGGRESSION

ALL-ROAD AGGRESSION

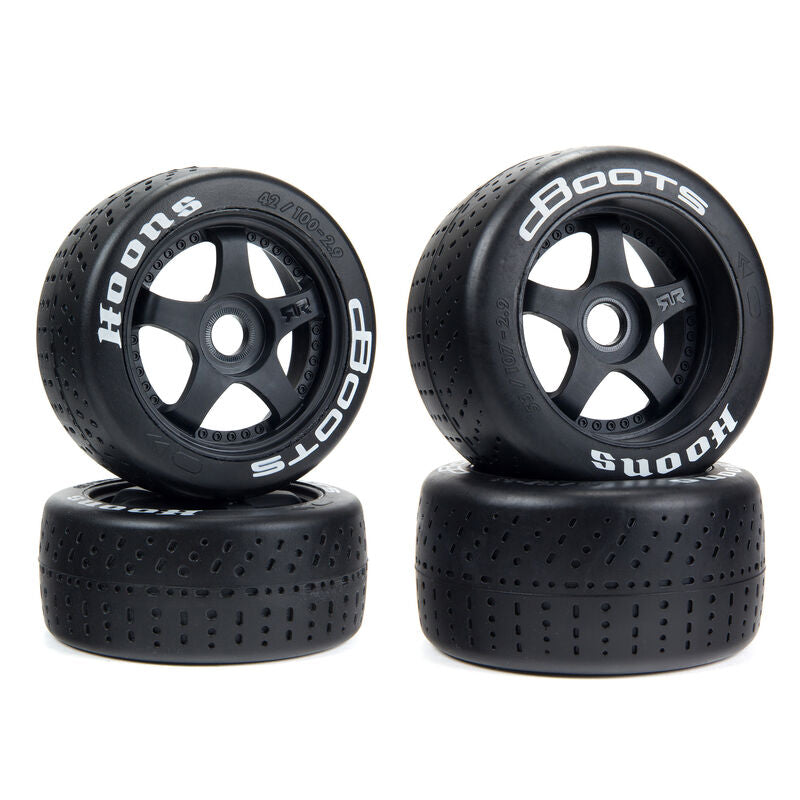

dBoots HOONS tires designed for extreme all-road action. Classic 5-spoke wheels.







BIGGER TIRES IN THE BACK

BIGGER TIRES IN THE BACK

Wider and larger diameter rear tires add to the resto-mod muscle car style. Front and rear gearbox ratios are matched to the tire size.

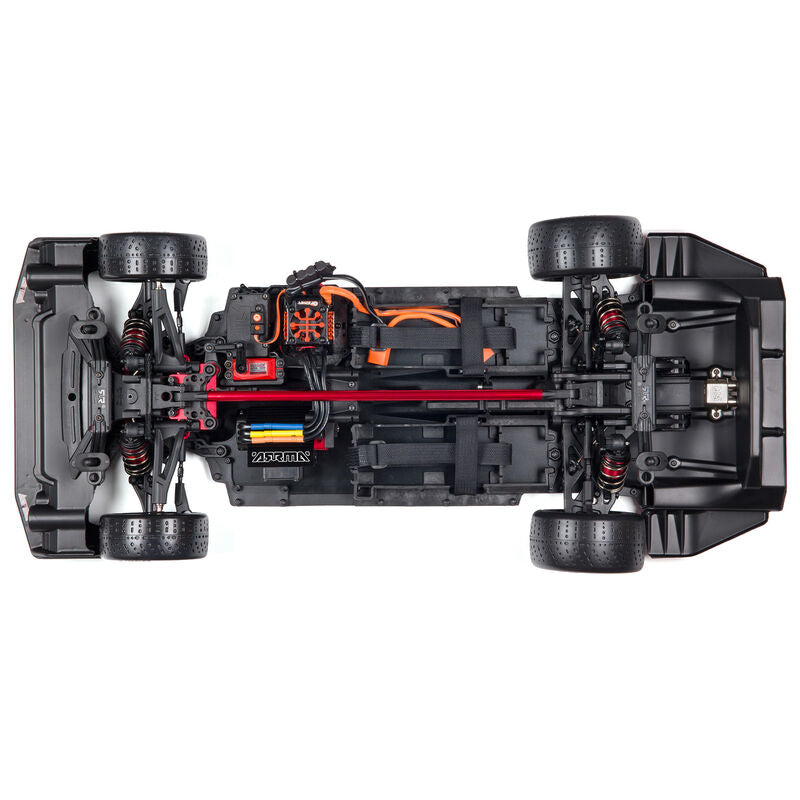

WELL SUPPORTED

WELL SUPPORTED

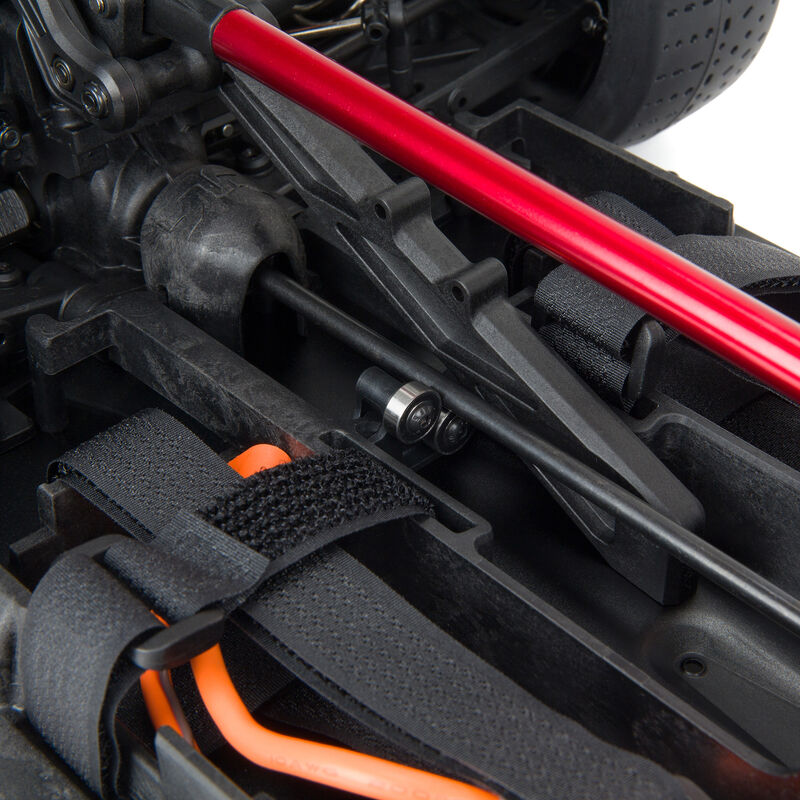

The included center driveshaft high-speed support set prevents vibrations and increases drivetrain durability

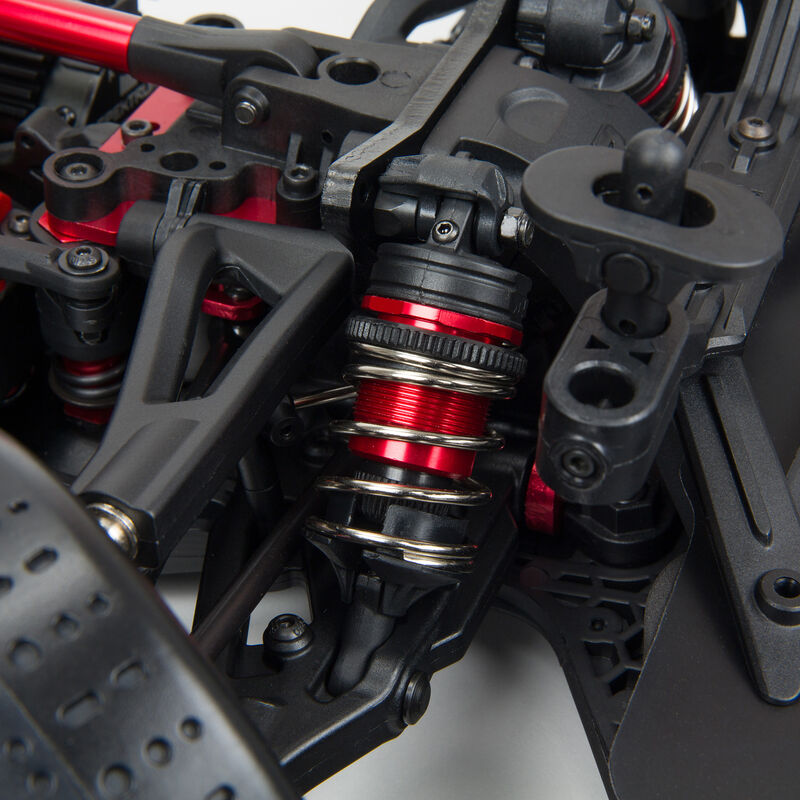

HEAVY DUTY

HEAVY DUTY

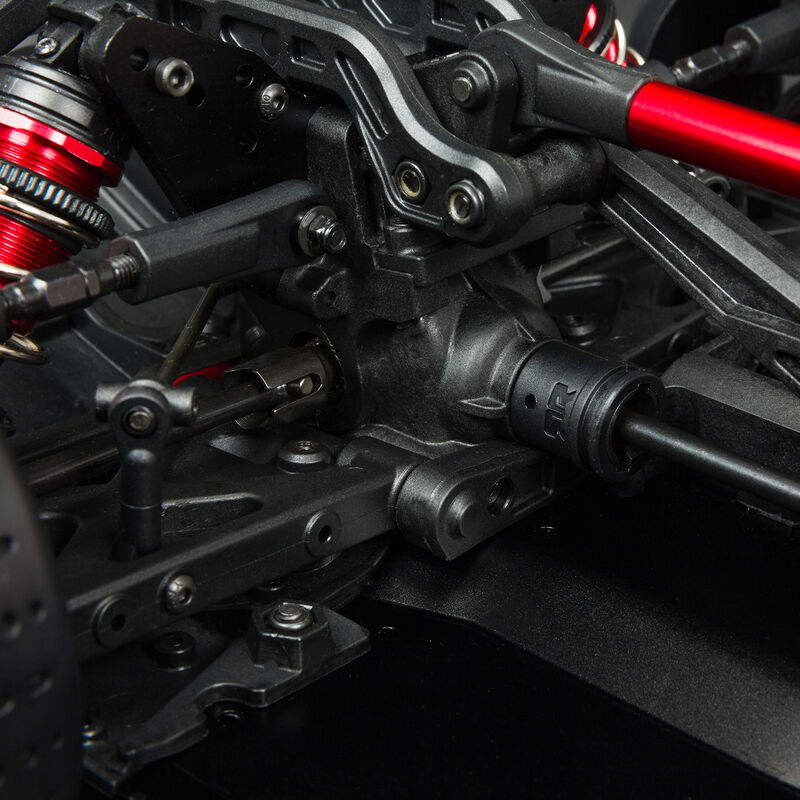

Tough A-arms and drivetrain components that keep you bashing for longer







CAPTURED & SEALED

CAPTURED & SEALED

Captured ball ends that will never pop off and hub nut o-rings.







SAFE-D FIRST

SAFE-D FIRST

Input gears are keyed to the drive cups composite sleeves to fortify the retention of the drive cup set screw







HAVING IT LARGE

HAVING IT LARGE

Large battery trays allow you to fit up to 7.09" (180mm) x 2.17" (55mm) x 2.76" (70mm) size batteries







ARRMA ADS-15M SERVO

ARRMA ADS-15M SERVO

Strong, metal gears used throughout

Waterproof, dustproof case

25 tooth output spline

Torque: 14kg-cm (194oz-in) @6V

Speed: 0.16sec/60deg @6V

Dimensions: 40x38x20mm (industry standard size)

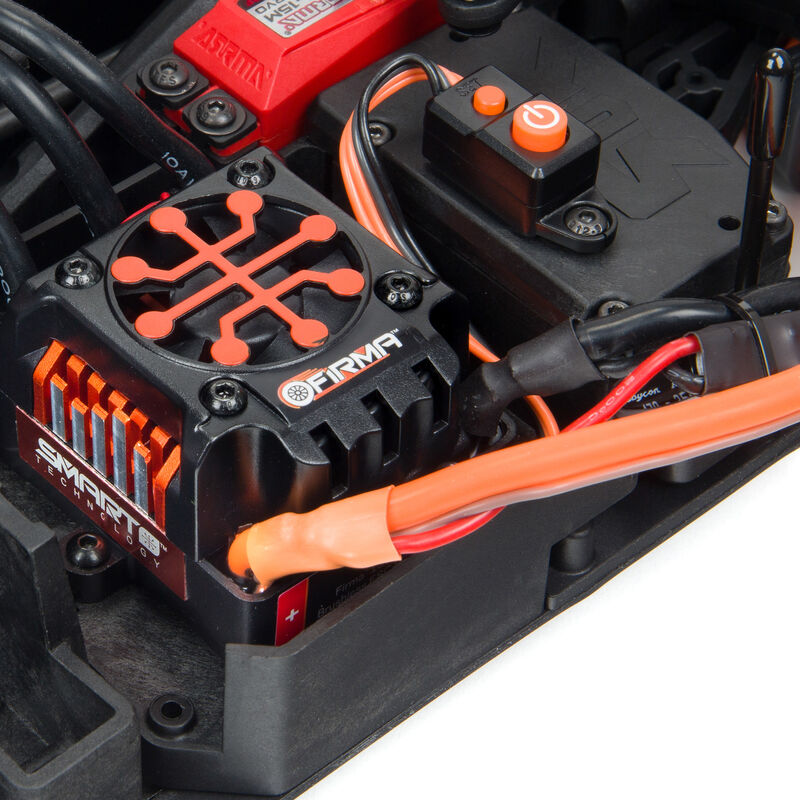

SPEKTRUM FIRMA ESC

SPEKTRUM FIRMA ESC

Waterproof, dustproof design

150A, 6S LiPo ready (3S, 4S, & 6S compatible)

Spektrum Smart Technology

Fitted with reliable IC5 connectors (EC5 compatible)

Integrated fan for reduced heat during extreme running

High Quality 10awg wires

Low voltage cut-off and thermal overload protection

User programmable punch, brake, BEC, LVC sensitivity, reverse speed, and motor timing settings

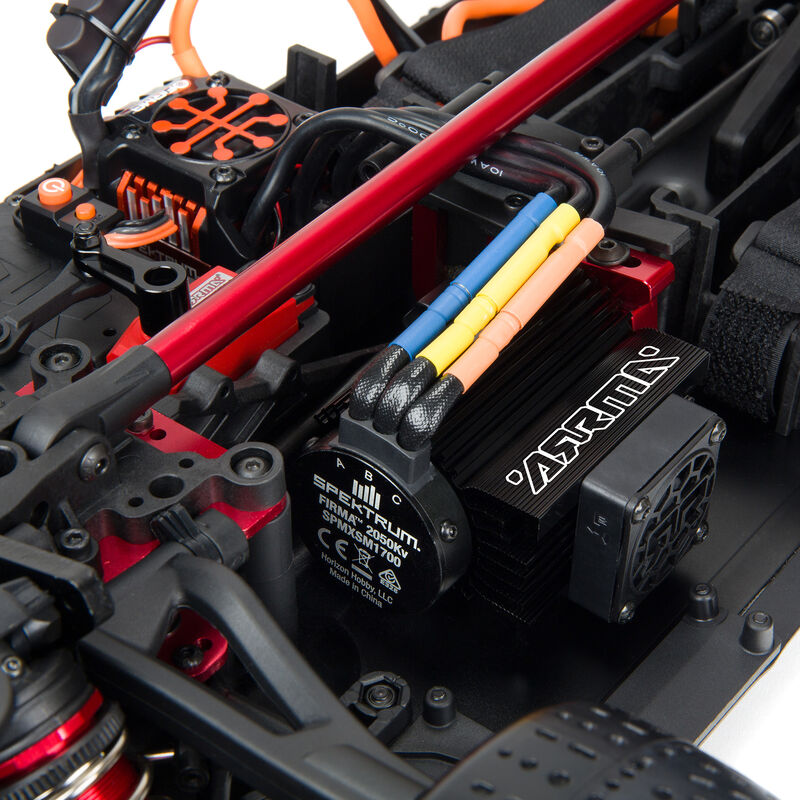

SPEKTRUM FIRMA MOTOR

SPEKTRUM FIRMA MOTOR

2050Kv 4074 size 6S brushless motor

Beautifully etched aluminum can

4-pole construction for smooth, consistent power

4mm gold bullet connectors for reliable and efficient connection

Black anodized aluminum motor can for increased heat dissipation

Super strong 5mm shaft

Groove at the end of the motor shaft allows the installation of a pinion retaining E-clip

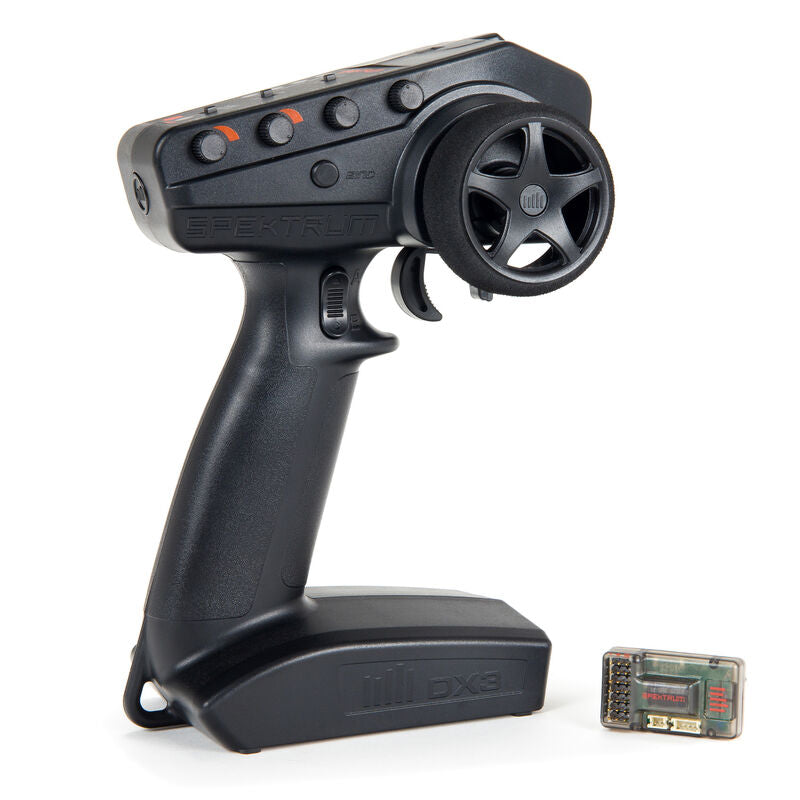

SPEKTRUM DX3 RADIO & SR6110AT AVC RECEIVER

SPEKTRUM DX3 RADIO & SR6110AT AVC RECEIVER

Ergonomic steering wheel for precise control

On-the-fly adjustable AVC gain for personalized handling

Lightweight and ergonomic design for long bashing

3 channel radio system

2.4GHz connection built around DSMR technology

Full-range telemetry







The 1/7 scale ARRMA® FELONY™ 6S BLX Street Bash 4WD RTR brings retro mod style to the BLX platform. Fast and tough, it can reach 80+ MPH speeds out of the box over on-road, dirt and oval tracks — and includes telemetry-capable Spektrum® Smart electronics.

Looking For Parts?

Product Details

 In The Box

(1) 1/7 ARRMA® FELONY™ Resto Mod Street Bash 6S BLX 4WD RTR

(1) Spektrum® Firma™ 150A Smart ESC (installed)

(1) Spektrum® Firma™ 4074 2050Kv Brushless Motor (installed)

(1) ARRMA® ADS-15M Waterproof Servo (installed)

(1) Spektrum® SR6110AT AVC Receiver (installed)

(1) Spektrum® DX3™ DSMR® Radio

(1) 1/7 FELONY 6S BLX Street Bash Manual

 Needed to Complete

(2) 2S or (2) 3S LiPo Batteries with EC5™ or IC5™ connector

(1) Compatible Battery Charger

(4) AA batteries for Transmitter

1/7 FELONY 6S AVC 4X4 RTR Brushless All-Road Street Bash, Black

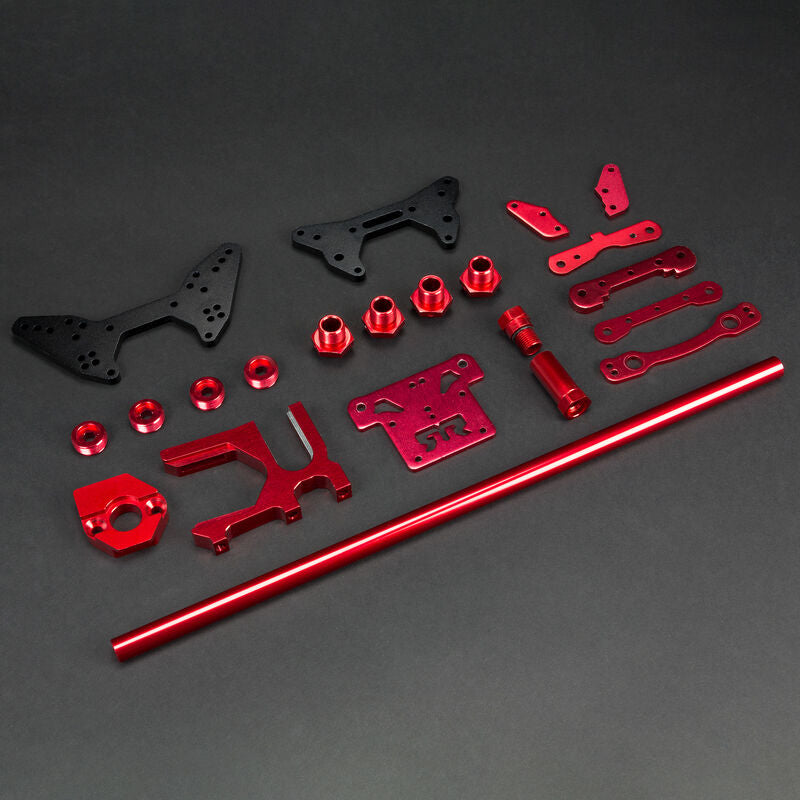

Shop Popular Accessories For The 1/7 FELONY 6S BLX

Ball Bearings

Full set

Battery

Sold Separately

Battery Tray Dimensions

7.09 x 2.17 x 2.76" (180x x55 x 70mm)

Body

FELONY, Screen printed, Decaled, Trimmed

Brakes

Integral with ESC

Bushing Material

Metal

Charger

Sold Separately

Chassis

0.12 in (3mm) Plate, 6061-T6 Aluminum

Completion Level

Ready-To-Run

Connector Type

IC5, EC5

Drive Type

Forward/Brake/Reverse

Drivetrain

4WD

Final Drive Ratio

F:8.05:1, R:8.83:1

Front Track

12.13 in (308mm)

Internal Gear Ratio

F: 2.8:1, R: 3.07:1

LiPo Compatibility

4S, 6S

Max Battery Dimensions

5.5 x 1.85 x 1.5" (140 x 47 x 38mm)

Motor Size

Firma™ 4074 2050Kv Brushless Motor

Motor Type

Brushless

Pinion

16T

Power System

6S

Power Type

Electric

Product Height

7.56" (192 mm)

Product Length

28.54" (725 mm)

Product Weight

11lb (5kg)

Product Width

12.91" (328 mm)

Radio

Included

Rear Track

12.91 in (328mm)

Receiver

Included

Scale

1/7

Servos

Included

Shock Type

3.03 in (77mm) FR, 3.43 in (87mm) RR. Aluminum body, oil-filled

Speed Control

Included

Spur Gear

46T

Steering Type

2WS

Suspension

Independent

Technology

AVC and SMART

Tire Tread

dBoots Hoons

Top Speed

80+

Vehicle Size

Large

Vehicle Type

All-Road

Water-Resistant

Yes

Wheel Hex Size

17mm

Wheelbase

15.98 in (406mm
